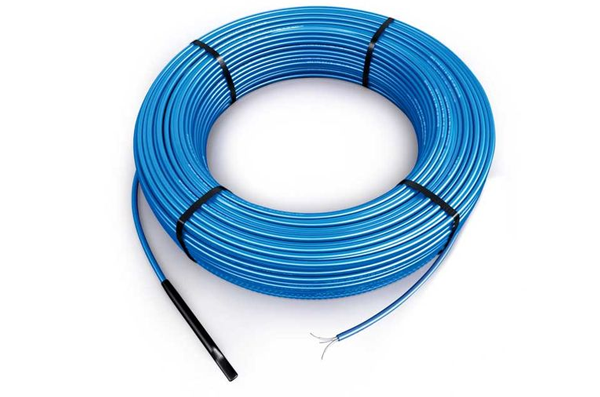

Pipe Frost Protection Cable
Warmup’s line of frost protection cables effectively prevent frost damage to water pipes.
Applications
Water pipes
Metal pipes
Plastic pipes
Warmup pipe frost protection cable systems prevent pipes from freezing. Freezing weather conditions can cause pipes to burst, causing damage to pipework and property due to water leakage. Warmup frost protection systems work to prevent this winter hazard.
In very cold conditions, thermal insulation alone cannot fully protect pipes from freezing. Warmup frost protection systems safeguard water pipes, fire mains, sprinkler systems and sewage pipes from frost in severe winter conditions.
Key Benefits
Built-in sensor
The built-in sensor allows to have stand alone operation without the need of additional controllers or thermostats.
Easy to install
With the plug and play feature, the cable can be installed in a matter of minutes.
Extended life for pipes
Installing a pipe frost protection cable can extend the life of pipes.
Guarantee & Warranty
SafetyNet Installation Guarantee
If you accidentally damage the heating system during installation, return it to Warmup and we will replace it with another system of the same make and model free of charge.
10 Year Warranty
This product comes with a 10 Year Warranty. We are completely confident in the standard of our products.
| Operating voltage | 220-230V AC, 50Hz |
| Power rating | 10W/m |
| Cable thickness | 9mm |
| Supply cable length | 2m |
| Cold lead connection | Sleeveless |
| Insulation | PTFE |
| Operating temperature | 65ºC |
| Regulation | ON/+5°C, OFF/+15°C |
| Minimum bending radius | 45mm |
| Certificates |  |
| Model | Cable Length (m) | Wattage (W) | Amperage (A) | Resistance (Ω) |
| WFPC10 | 1 | 10 | 0,04 | 5290 |
| WFPC20 | 2 | 20 | 0,09 | 2645 |
| WFPC30 | 3 | 30 | 0,13 | 1763 |
| WFPC40 | 4 | 40 | 0,17 | 1323 |
| WFPC50 | 5 | 50 | 0,22 | 1058 |
| WFPC60 | 6 | 60 | 0,26 | 882 |
| WFPC70 | 7 | 70 | 0,30 | 756 |
| WFPC80 | 8 | 80 | 0,35 | 661 |
| WFPC90 | 9 | 90 | 0,39 | 588 |
| WFPC100 | 10 | 100 | 0,43 | 529 |
| WFPC120 | 12 | 120 | 0,52 | 411 |
| WFPC140 | 14 | 140 | 0,61 | 378 |
| WFPC180 | 18 | 180 | 0,78 | 294 |
| WFPC220 | 22 | 220 | 0,96 | 240 |
| WFPC240 | 24 | 240 | 1,04 | 220 |
| WFPC280 | 28 | 280 | 1,22 | 189 |
| WFPC320 | 32 | 320 | 1,39 | 165 |
| WFPC360 | 36 | 360 | 1,57 | 147 |
| WFPC480 | 48 | 480 | 2,09 | 110 |
| WFPC500 | 50 | 500 | 2,17 | 106 |
| WFPC600 | 60 | 600 | 2,61 | 88 |
