Heating mat StickyMat 3D
Innovative electric heating mat that provides heat for cold wall tiles.
Heating mat StickyMat 3D
Innovative electric heating mat that provides heat for cold wall tiles.
Main characteristics
Strong self-adhesive backing
Easy to attach and reposition on to the substructure
Ultra thin cable with 1,8 mm thickness
Allows to tile directly over the heating mat
Quick installation
Available in a range of sizes perfect for the bathroom
Specifically designed for heating tiled walls
Used in conjunction with a Warmup floor heating solution, the StickyMat 3D system is ideal for creating a 360º sense of warmth in the bathroom. It has been developed by our in-house team of engineers and is recommended for installation with ceramic, stone or porcelain wall tiles. Its heating wires are ready attached to a self-adhesive backed mesh for a hassle-free installation.
StickyMat 3D for luxurious hidden wall heat
Using wall heating alongside a Warmup floor heating system is the future of energy-efficient home heating and the StickyMat 3D wall heating system features state-of-the-art radiant technology to enhance the comfort and warmth of a bathroom. Whether renovating an existing room or specifying heating for a new-build project, an electric wall heating solution is ideal for warming up cold, tiled walls and bringing a touch of luxury to a bathroom or wet room.
Unique 360° technology
The StickyMat 3D features a 100% continuous earth braid, making it fully compliant with the latest regulations for wall heating applications. It utilises an ultra-thin, 1,8 mm multi-strand, dual-core heating cable which is double insulated with an advanced fluoropolymer, making it exceptionally tough and easy to tile over. StickyMat 3D is available as a 200 W/m² mat guaranteeing the quickest heat-up times and can be ordered in a range of sizes from 0,5 to 2m².
Reduces installation times by 35%

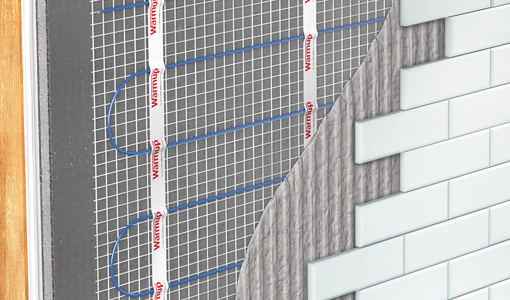

The StickyMat 3D offers rapid installation times. Simply roll out the 0,5 m wide mats in parallel runs and attach directly to the substrate. The pressure sensitive adhesive on the mesh securely binds the StickyMat 3D to the wall which keeps the mats flat and ensures a smooth and easy application of tile adhesive whilst also allowing the mats to be easily repositioned as needed. Due to the range of sizes available, you can install several StickyMat 3D heating mats in one area for greater coverage.
The StickyMat 3D system is BEAB approved and CE marked, meeting the highest safety standards and comes with a lifetime Warranty and Warmup’s SafetyNet installation guarantee.
Compatible with the coated insulation boards

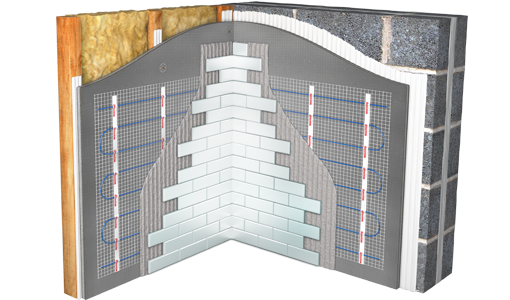

Insulation is imperative in maximising the energy efficiency of any floor or wall heating system and the StickyMat 3D has been designed to be installed with Warmup’s insulation boards. The boards rapidly improve the responsiveness of the system.
Control wall heating and floor heating with the same thermostat
It is possible to control the StickyMat 3D wall heating system with the same thermostat used to control the floor heating system. If installing both a floor and wall heating system to one thermostat, the thermostat must be connected in order to take the reading from the floor sensor. A maximum of two heating systems can be wired into one thermostat, and if more than two, a junction box is required for safe usage. The thermostat must be placed on a different wall, so that the in-built air sensor has an accurate reading of the room’s temperature.
Perfect to heat bathrooms
Our unique wall heating system is ideal if wishing to add to the heated area of a bathroom when there is little available floor space. Installing a system in the bathroom removes the need for traditional bulky radiators, allowing much greater design freedom. The gentle warmth produced by the system is ideal for a pre-heated walk-in shower and transforms a bathroom into a personal spa.
Prevents condensation forming on bathroom walls
Wall heating helps eliminate the typical condensation that quickly forms on bathroom walls, therefore keeping the room drier and fresher. This attribute has the added benefit of reducing the build-up of possible mould in the heated areas – dramatically improving the atmosphere of a bathroom or wet room.
Warranties
SafetyNet Installation Guarantee
If you accidentally damage the heating system during installation, return it to Warmup and we will replace it with another system of the same make and model free of charge.
Lifetime Warranty
This product comes with a Lifetime Warranty. We are completely confident in the standard of our products.
| Operating voltage | 230 V AC ±15%, 50 Hz |
| Width | 50 cm |
| Cable thickness | 1.8 mm |
| AInner /Outer Insulation | Advanced fluoropolymer |
| Output rating | 200 W/m² |
| Supply cable length | 3 m |
| Certificates |   |
| Model | Area (m²) | Dimensions (m) | Wattage (W) | Amperage (A) | Resistance (Ω) |
| 2SMFW0.5 | 0,5 | 1 x 0,5 | 100 | 0,43 | 529 |
| 2SMFW1 | 1,0 | 2 x 0,5 | 200 | 0,87 | 265 |
| 2SMFW1.5 | 1,5 | 3 x 0,5 | 300 | 1,30 | 176 |
| 2SMFW2 | 2,0 | 4 x 0,5 | 400 | 1,74 | 132 |
Also needed
Thermostat
Choosing the correct control system is crucial in ensuring that the heating system works in the best possible way, efficiently and easily
Insulation Boards
Using Insulation Boards with floor heating significantly reduces the heat-up times and running costs.
